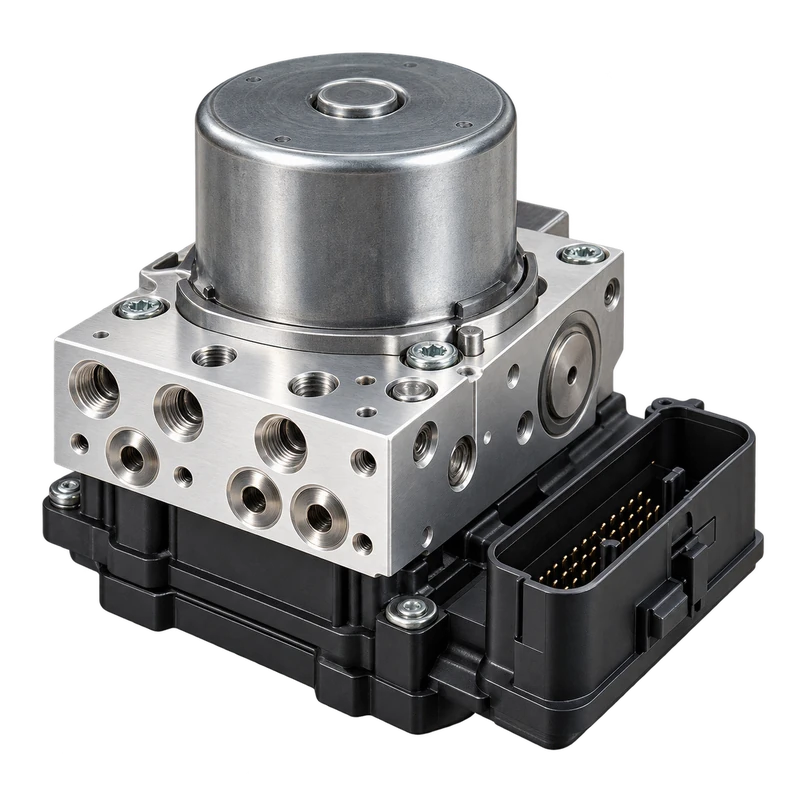

ABS pump & control module
Combined hydraulic pump and electronic controller used on many ABS and ESP systems.
ABS pump coding · ESP configuration · chassis calibration
ABS & ESP Module Programming Birmingham & UK
Programming and configuration support for compatible replacement ABS pumps and ESP control units, followed by the basic settings and calibration procedures required by the vehicle.
✓ Vehicle-specific checks✓ Controlled programming✓ Clear verification
ABS pump codingESP variant setupSAS calibrationYaw & pressure setup
ABS & ESP electronics
Replacement ABS modules may need coding and calibration.
A physically compatible ABS/ESP module may still require VIN or variant configuration before the vehicle recognises it correctly. Some vehicles also require steering-angle, yaw-rate or brake-pressure calibration.
We first confirm the module and vehicle details because hydraulic faults, wheel-speed sensor faults and wiring problems cannot be corrected by coding alone.
Before we program anything
✓Vehicle and module identification checked
✓Diagnostic fault information reviewed
✓Compatibility confirmed where possible
✓Programming route selected for the exact job
Workshop & bench work
ABS & ESP Coding Workshop Checks
A complete ABS/ESP job can involve controller identification, replacement-module setup and calibration of related chassis sensors. For a real repair example, see our BMW 1 Series DSC and ABS programming case study.

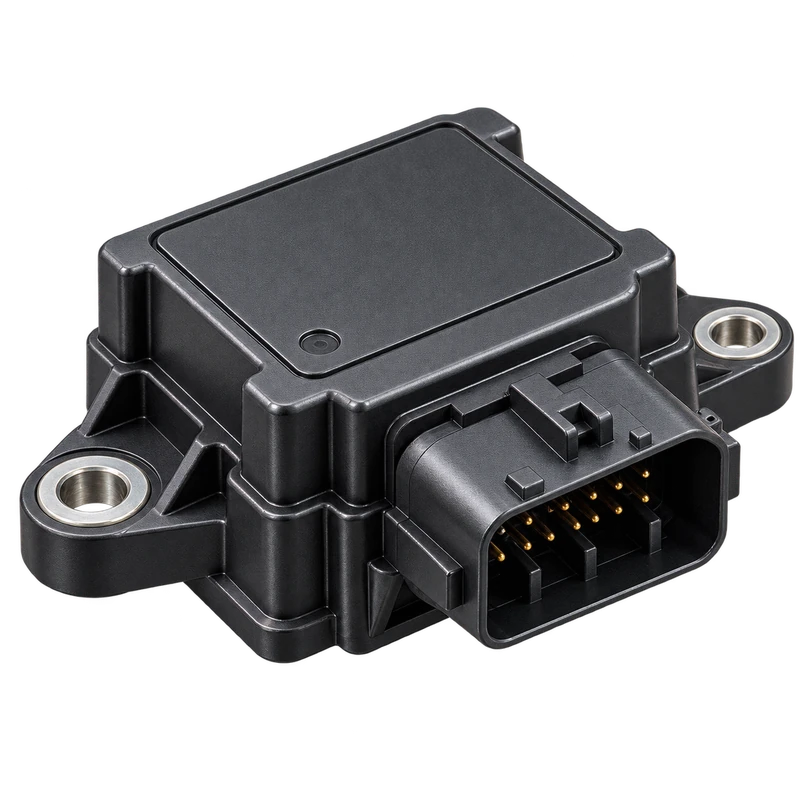

ABS/ESP controller
Controller identification and connector condition are checked before coding.

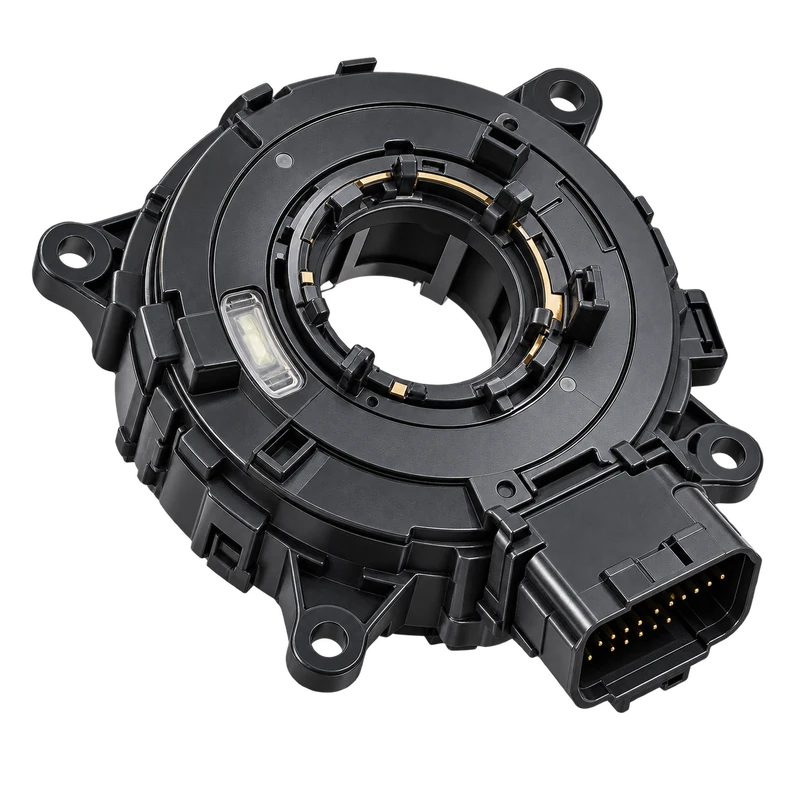

Steering-angle sensor
Steering-angle calibration may be required after replacement or chassis work.

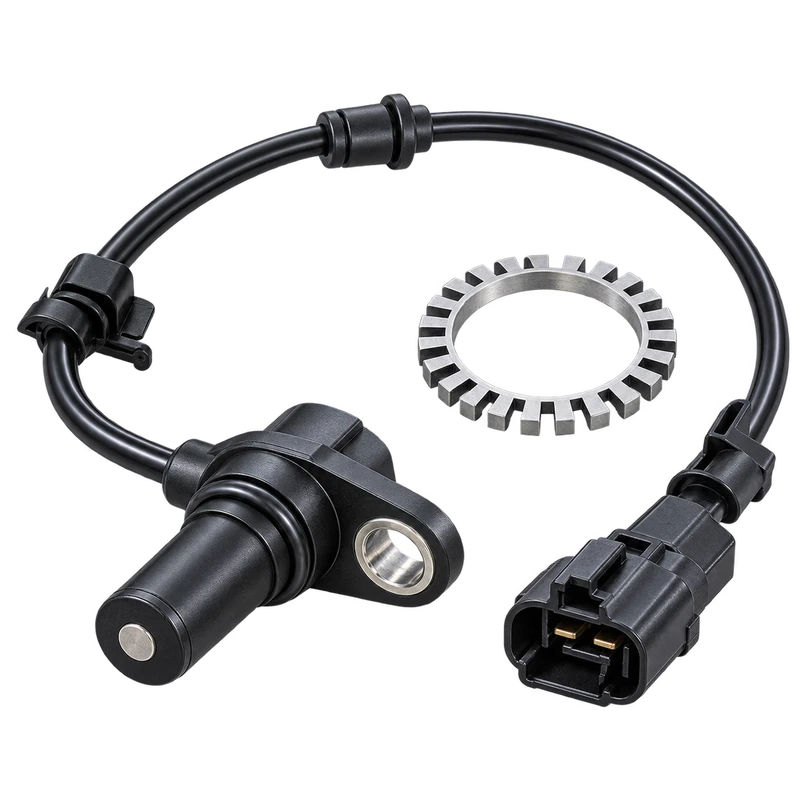

Wheel-speed sensor
Wheel-speed signals are checked when ABS or stability-control faults are stored.

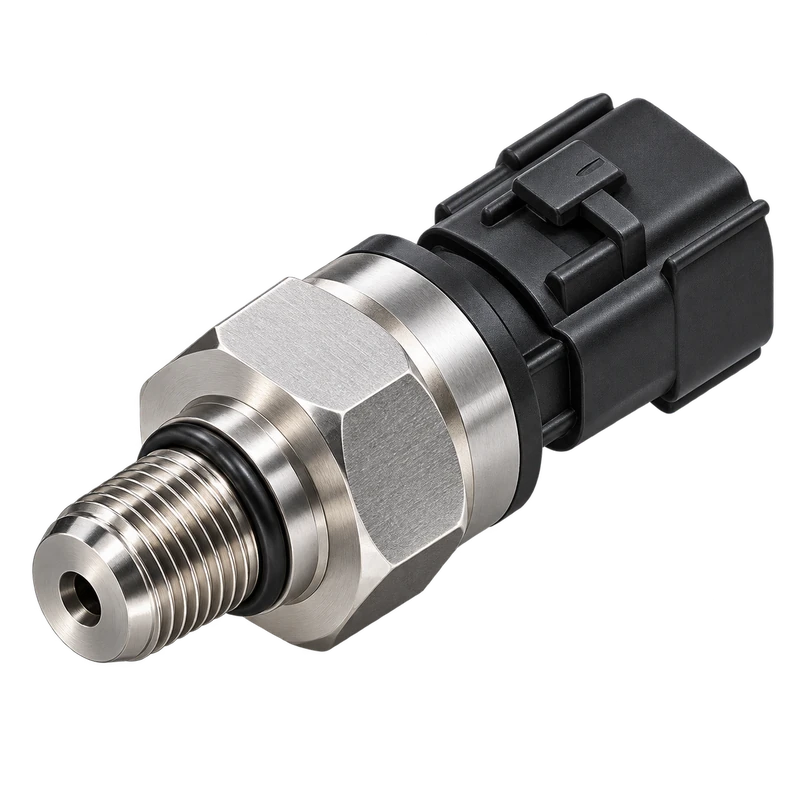

Brake-pressure sensor
Pressure-sensor data can be part of ABS and ESP fault diagnosis and setup.
ABS pump images
ABS Pump & Control-Unit Examples
Examples of the electronic and hydraulic ABS/ESP units that may require identification before supported programming, coding or configuration work.

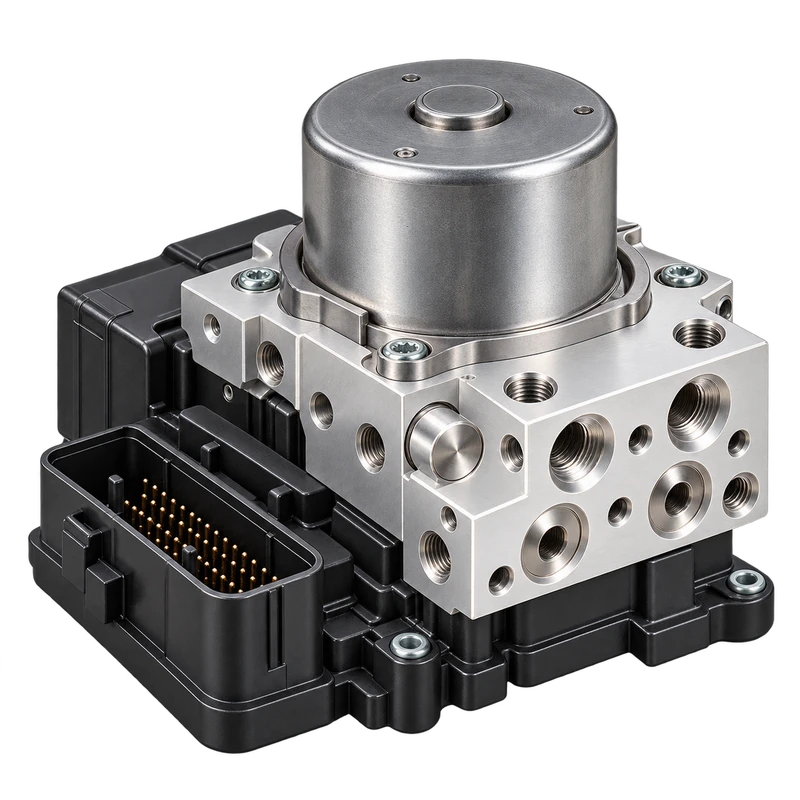

Hydraulic control unit
Valve-body and controller assembly requiring exact part-number and software matching.

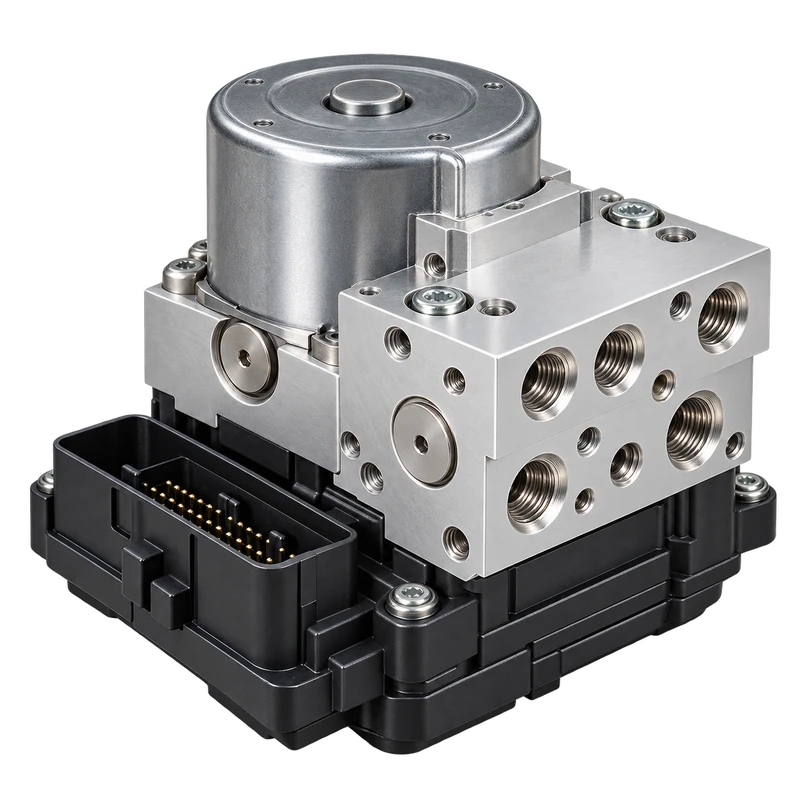

ABS hydraulic pump
Hydraulic pump assembly example used for identification before supported coding or repair.
Service options
ABS and stability-control programming options.
Support depends on the platform, module version and diagnostic access available.
Replacement ABS pump coding
Configuration of compatible replacement ABS electronic control units.
ESP variant coding
Vehicle-option coding for supported stability and traction systems.
Steering angle calibration
SAS zero-point or basic settings after compatible repairs.
Yaw & pressure calibration
Supported initialisation of yaw-rate and brake-pressure sensors.
Typical enquiries
Typical reasons customers contact us.
Programming is normally considered after the physical fault and donor-module compatibility have been checked.
Replacement ABS pump fitted
Warning lights remain because the replacement module is not configured.
Incorrect coding fault
Diagnostic scan reports coding, configuration or variant mismatch.
SAS calibration required
Steering-angle basic setting is lost after replacement or repair.
ABS module offline
Communication needs to be checked before any programming is attempted.
VIN & variant data
Supported identification and vehicle-specific configuration.
CAN communication
Network faults checked when the ABS module is offline.
Live sensor data
Wheel speed, steering and other available values checked after work.
Post-programming scan
Fault memory and relevant basic settings verified after coding.
Specialist support
Chassis electronics need accurate vehicle data.
ABS and ESP modules interact with steering, engine, gearbox and body systems. Correct configuration helps all of those controllers agree on the vehicle specification.
Identify. Diagnose. Program. Verify.
Module identification
Confirm VIN, ABS/ESP part number and current fault codes.
Compatibility check
Verify donor or replacement controller suitability.
Coding & setup
Apply supported coding and required basic settings.
Final verification
Rescan and check available live data and warning status.
ABS and ESP are safety-related systems. Programming is not a substitute for repairing hydraulic, wiring, wheel-speed sensor or mechanical brake faults.
Need a compatibility check?
