Peugeot & Citroën Siemens SID804 ECU Cloning & Bench Programming

A genuine PSA engine-control-unit workshop record showing Siemens SID804 ECU cloning and bench programming work, using direct circuit-board access and a controlled programming fixture.

The job description identifies the Peugeot / Citroën SID804 family; photographs show the ECU and software workflow, but do not independently confirm the final ECU part number, completed donor clone or vehicle-side results. The exact hardware, software and donor compatibility must be checked before approval.

PSA Siemens SID804ECU cloningBench programmingPeugeot & CitroënUK postal enquiries

PSA Siemens engine ECU opened and connected to bench programming fixture in SG-Tronic workshop

Siemens SID804 ECU job overview

ECU family

PSA Siemens / Continental SID804

Primary service

ECU cloning & replacement programming

Method shown

Opened ECU · direct bench connection

Service options

Stourbridge workshop · UK by post

Real workshop photos · PSA ECU programming

SID804-series ECU cloning and bench programming photographs

These three original photographs record the electronics bench, connected probes and programming software. The pictures are colour-accurate, lightly compressed and retain the full-size originals in the image viewer.

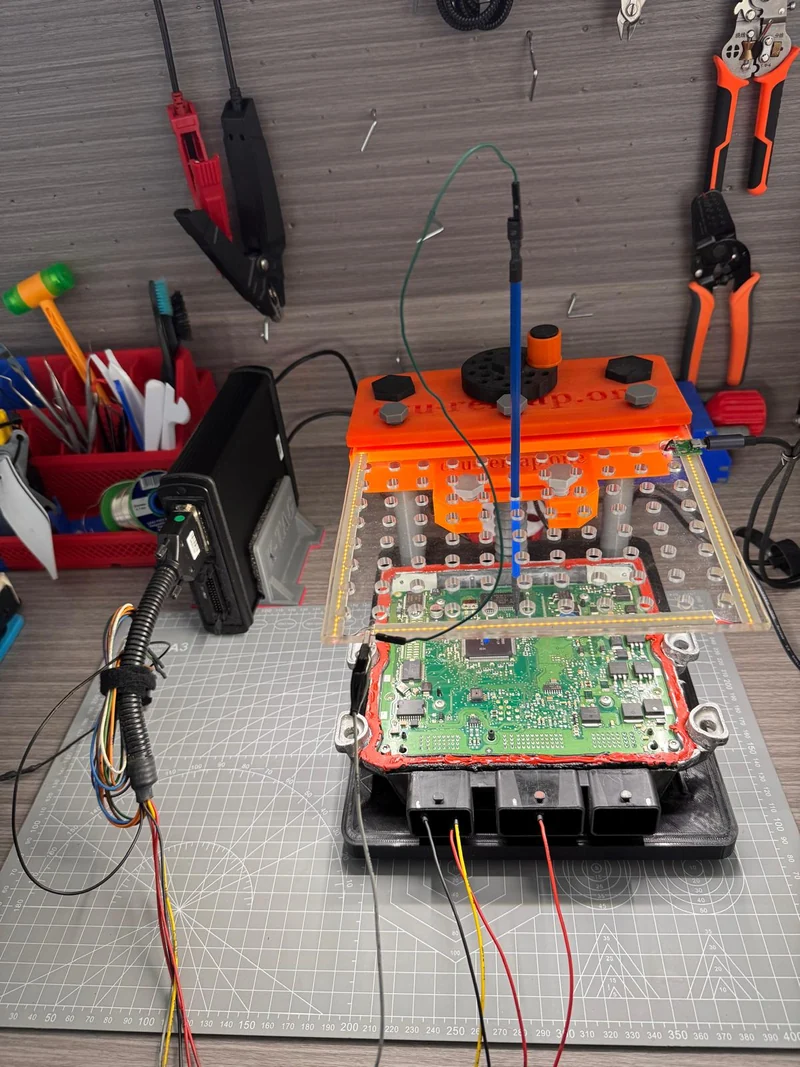

Opened PSA ECU printed circuit board with connected programming probes and orange fixture.

Direct ECU probe access

PSA diesel engine ECU on the programming bench with contact probes connected to its circuit board.

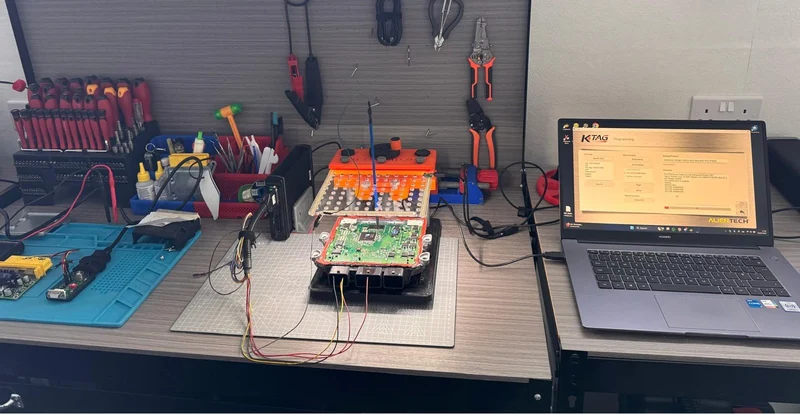

K-TAG programming interface beside opened PSA ECU and bench programming equipment.

Programming software session

The K-TAG software screen and controlled workbench connection. The pictured selected SID801-family protocol is not proof of the precise SID804 identification.

Complete workshop view of opened PSA engine control unit and direct ECU bench programming fixture.

Complete bench programming setup

Wiring, ECU connectors, direct board access and bench fixture documented before vehicle-side installation checks.

Compatible replacement ECU data

What is involved in cloning a Peugeot or Citroën SID804 ECU?

When an original engine ECU has failed or must be replaced, a suitable donor may need the original vehicle-specific data before it will operate correctly. Depending on the unit, the work can involve flash memory, EEPROM or security data, engine calibration and ECU coding. This is different from simply writing a generic map or fitting a second-hand ECU.

Identify the ECU

Check the SID family, PSA and Siemens part numbers, hardware revision and existing fault codes.

Read and back up

Connect via the supported bench or boot access method and retain readable original data.

Assess the donor

Confirm that a replacement controller is genuinely compatible before transfer or programming.

Program and verify

Perform the supported write and bench communication checks; confirm any vehicle-side coding or tests still required.

Case-study accuracy: The photographs demonstrate the bench method, not completion of every step above. The laptop shows a selected SID801-family software protocol, so the SID804 identifier is recorded from the supplied job description rather than independently established from the screen. No original-versus-donor labels or final vehicle test were supplied.

PSA ECU families · compatibility reference

Other Siemens SID801, SID802, SID803, SID804, SID805 and SID806 ECUs

Peugeot, Citroën and related PSA diesel engines use several Siemens / Continental SID generations. They are related systems, not interchangeable replacement ECUs. Before a cloning, virginising, programming or recovery quotation, send clear photographs of the controller label and the vehicle details.

EARLIER HDi

SID801 / SID801A

Selected earlier Peugeot and Citroën HDi applications; check processor, memory layout and security data.

PSA DIESEL

SID802

Found in selected compact PSA diesel vehicles, including some 1.4 HDi applications.

2.0 HDi VARIANTS

SID803 / SID803A

Used in selected Peugeot and Citroën 2.0 HDi vehicles; donor suitability requires exact identification.

THIS ENQUIRY

SID804

Often associated with selected 1.4 HDi cars such as Citroën C2/C3 and Peugeot 1007, depending on model and year.

RELATED SID FAMILY

SID805 / SID806

Other supported PSA-oriented SID types; procedures and availability vary by the specific controller.

LATER PSA GENERATIONS

SID807 / SID807EVO

Later Siemens/Continental ECU generations; should never be assumed plug-and-play with SID804.

Other Peugeot and Citroën ECU manufacturers

Related enquiries can include Bosch EDC15, EDC16C34 and EDC17, selected Delphi DCM and later Continental SID controllers. Each family has different software, protection and data-transfer requirements. Example SID804 part-number formats include Siemens 5WS4… and PSA 96… references; these are identification examples, not a universal replacement list.

Peugeot Citroën ECU cloning, TCM programming and fault-code diagnostics

ECU cloning & donor programmingFlash, EEPROM and compatible replacement-unit transfer → Peugeot & Citroën programmingPSA engine ECU, BSI and vehicle electronics → TCM / TCU gearbox cloningAutomatic transmission and mechatronic controller programming → DTC diagnostics & software assessmentDiagnosis of persistent ECU P-codes and permitted software corrections → Peugeot Citroën BSI cloningCompatible BSI/BCM data transfer and module coding → ECU software recoveryFailed-flash and no-communication recovery assessment → UK ECU cloning by postSend approved original and donor modules with tracked delivery → Car fault-code diagnosticsInvestigate non-start symptoms and underlying electrical faults →

Stourbridge workshop appointments support Birmingham, Dudley, Halesowen, Wolverhampton and the West Midlands. UK-wide ECU cloning by post is available for compatible removed modules after a label check. Some mobile diagnostics and vehicle-side programming may be arranged separately; bench cloning usually requires the units at the workshop.

Questions before sending a PSA ECU

Siemens SID804 ECU cloning frequently asked questions

Can I send my Peugeot or Citroën SID804 ECU by post?

Yes, where the unit and requested service are approved first. Send label photographs, vehicle details and symptoms before shipping. An original and compatible donor may both be needed.

Can SID801, SID803 or SID806 replace SID804 directly?

No direct interchangeability should be assumed. Matching ECU family names do not establish hardware, software or immobiliser compatibility.

Does ECU cloning repair every no-start or DTC fault?

No. Power supply, ground, wiring, sensors, BSI/immobiliser synchronisation and other underlying vehicle issues must be diagnosed separately. See our car diagnostics and DTC information pages.

What if the original ECU will not communicate?

Some ECUs can be assessed by supported bench or boot methods, but physical processor or memory damage may prevent useful data recovery. A replacement route is then assessed separately.

PSA Siemens ECU support · SG-Tronic Motorsport

Send both ECU labels before buying a donor

For Peugeot or Citroën ECU cloning, SID804 programming, replacement ECU recovery or BSI/TCM-related faults, provide the registration, VIN, engine code, complete fault codes and photographs of original/donor labels. We will advise the supported workshop or postal route after compatibility checks.

Request compatibility check ECU cloning service Postal ECU service More case studies
