Citroen DSBSI Cloning & Wiper Repair

This Citroen DS came in with a body-electronics fault affecting the front wipers. The job required BSI cloning to a compatible donor module, followed by programming and steering wheel stalk coding.

The repair path included access checks, BSI identification, power and wiring diagnostics, bench preparation and final configuration verification.

Citroen BSI cloningBSI programmingFront wiper repairStalk coding

Citroen DS BSI bench programming and diagnostics setup for front wiper repair

Job summary

Vehicle

Citroen DS

Fault

Front wipers not operating correctly

Repair

BSI cloning, programming & stalk coding

Location

SG-Tronic Motorsport • Stourbridge

Citroen body electronics

Case Study Flow

A cleaner view of the job from vehicle inspection and access checks to module identification, bench work and final coding checks.

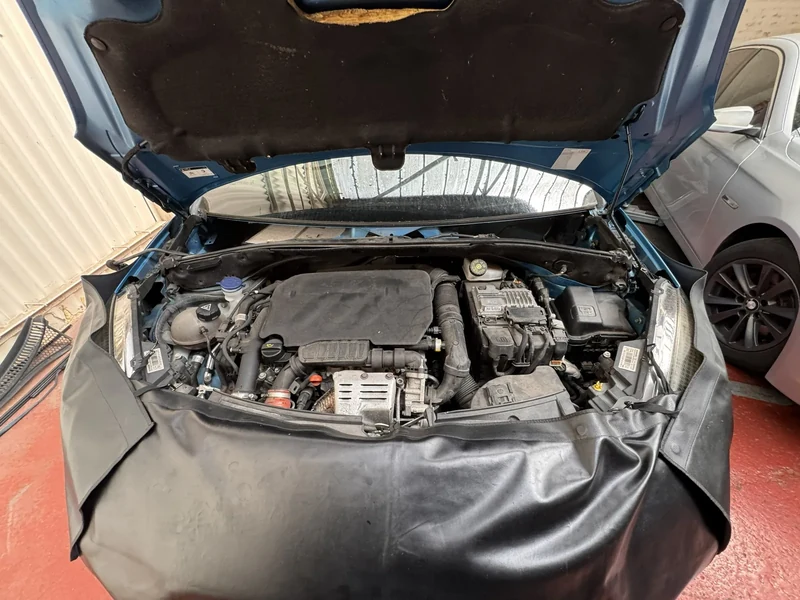

Citroen DS engine bay overview before BSI programming and front wiper repair

Vehicle overview

Initial view of the vehicle before BSI diagnosis and repair.

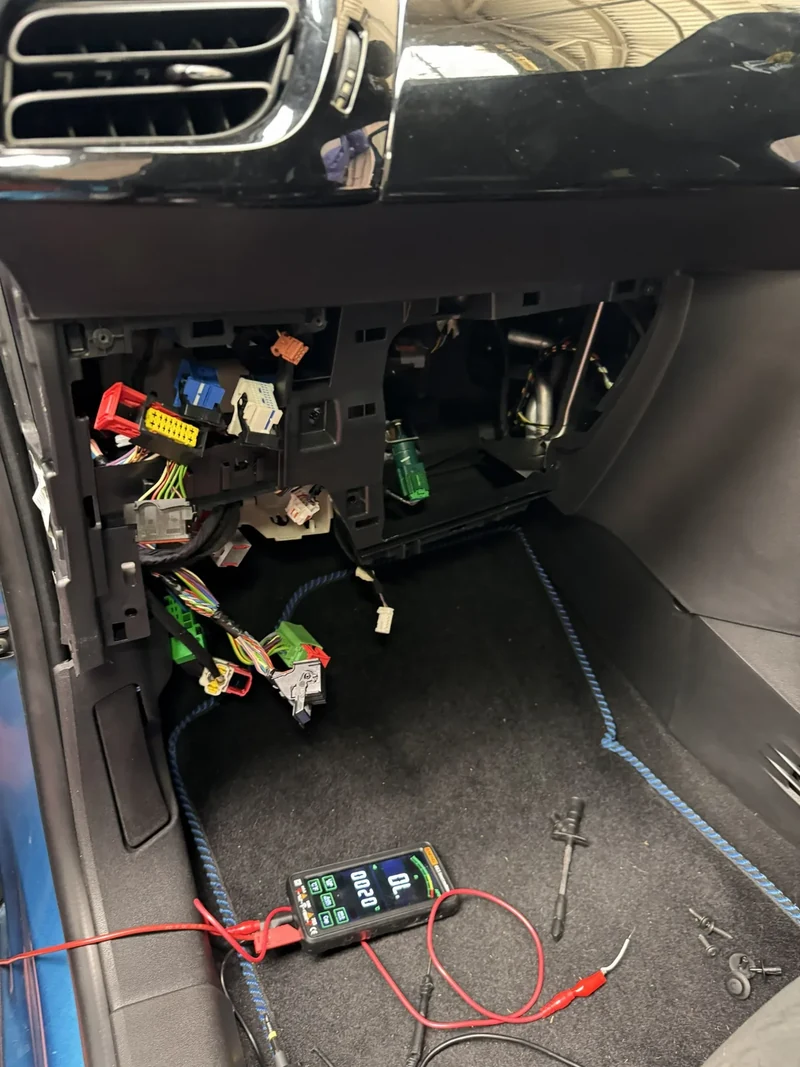

Dashboard access for Citroen DS BSI programming and cloning

BSI access

Dash trim removed for BSI and wiring access.

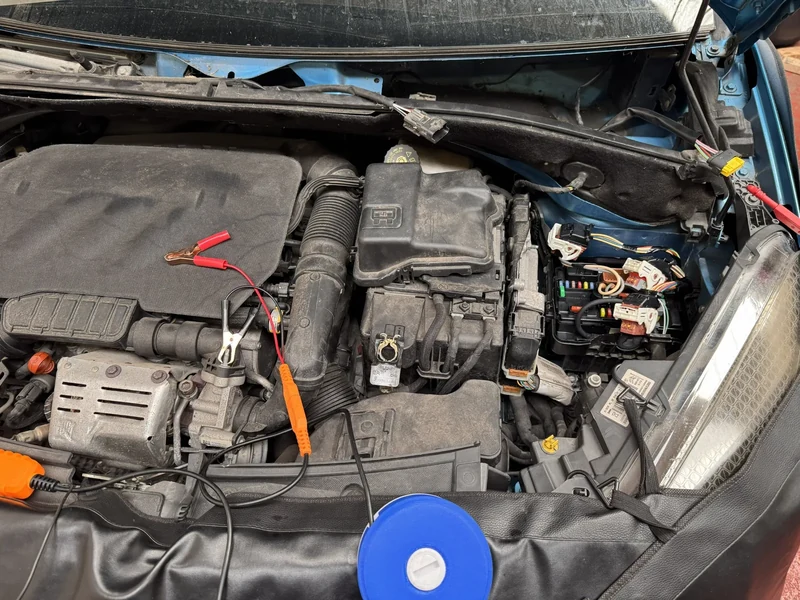

Power and diagnostics checks for Citroen DS BSI and front wiper fault

Power checks

Feeds and body-system faults checked before coding.

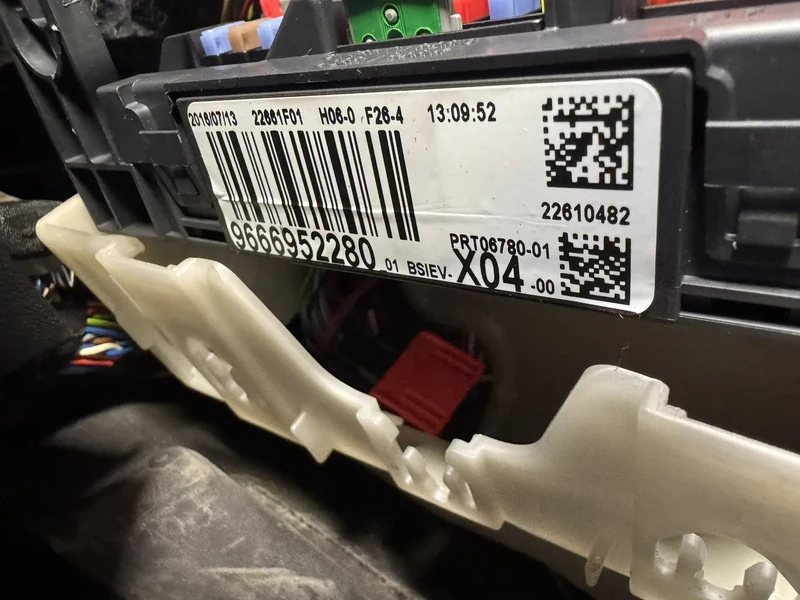

BSI identification label checked on Citroen DS before donor cloning

BSI label

Original BSI numbers confirmed for donor matching.

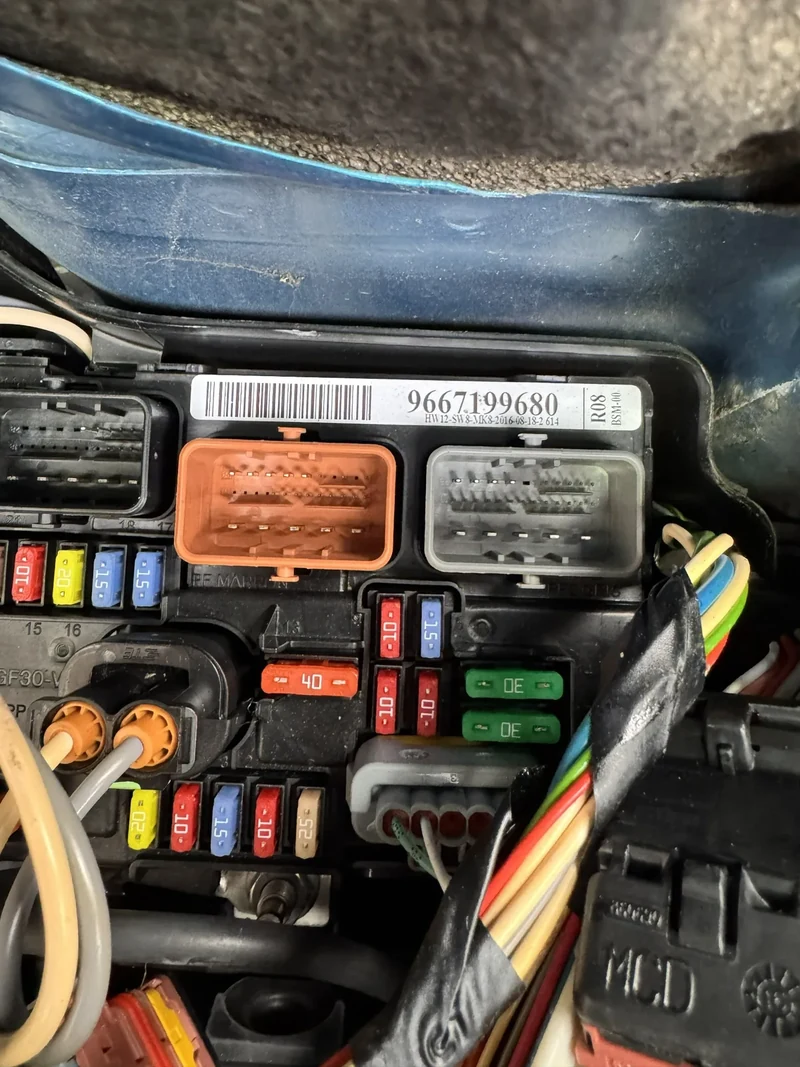

Citroen DS BSI connector and fuse details inspected during programming work

Connector check

Plug and fuse layout inspected for condition and match.

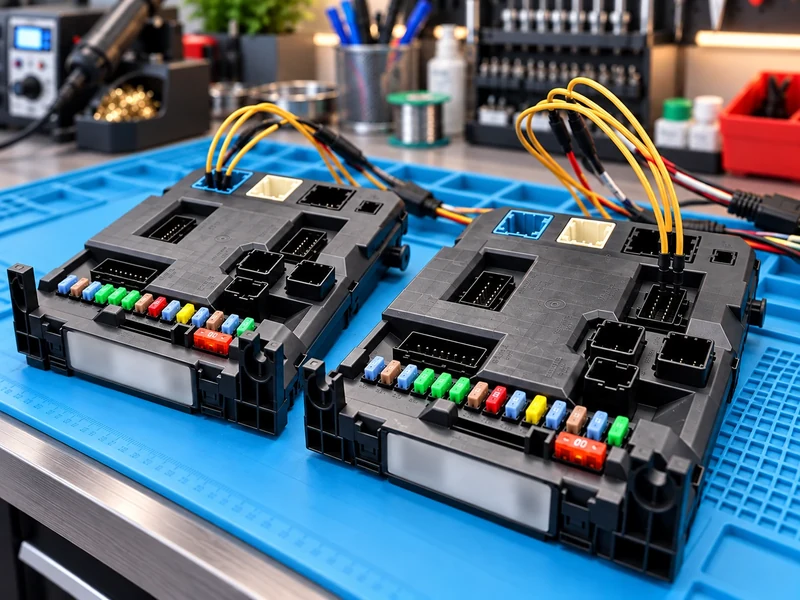

Close-up bench setup for Citroen DS BSI programming and verification

Bench detail

Close bench view of connected modules during verification.

Workshop bench setup prepared for controlled module work.

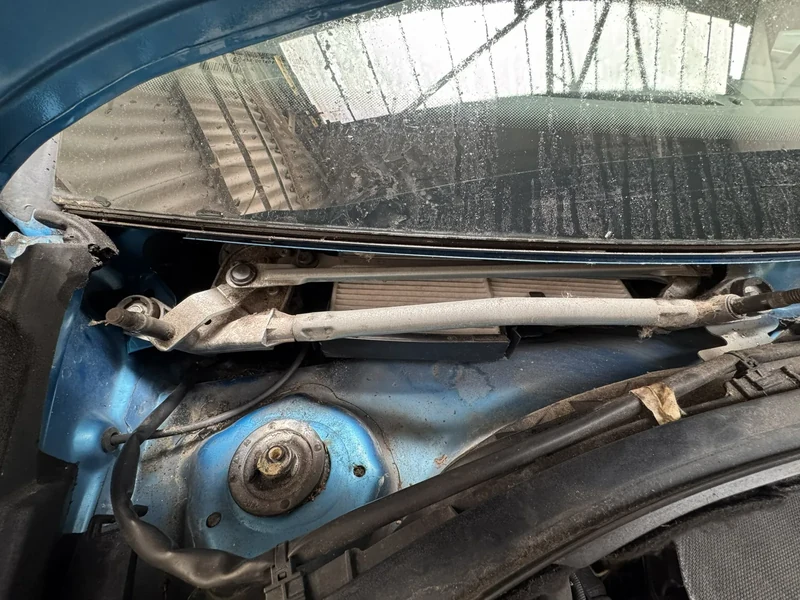

Wiper linkage access on Citroen DS during front wiper fault diagnosis

Wiper area

Scuttle and linkage area checked during fault finding.

Steering wheel stalk connector checked on Citroen DS after BSI work

Stalk input

Stalk connector checked before final coding verification.

Fault resolution

Repair Outcome

After cloning and programming, the BSI configuration was matched to the vehicle and the front wiper system plus steering wheel stalk inputs were checked again.

This job shows why BSI faults, power supply issues, wiring and steering-column inputs should all be checked before replacing parts.
